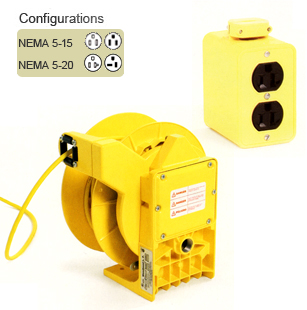

Cord Reel w/ Pendant Drop Box
- Containerized mainspring
- NEMA-4 enclosure
- Anti-lock-out ratchet system
- Modular collector rings
Industrial-duty cable reels are spring-powered reels made of precision electrical and mechanical components to accommodate up to 97.5m (320') of 16 AWG cable or up to 54.9m (180') of 1 AWG cable. Cable reels have NEMA-4 rating for indoor and outdoor use to protect against water and corrosion for weather and dust resistance. Precision collector rings can be specified for up to 36 conductors.
Reels (PDF) (1053 KB)
Industrial Duty Cord Reels w/ Pendant Outlet Box 15A
| Part No. | Base Reel | Cord Type | Cord Length | Configuration | Two Duplex Outlets | GFCI Duplex Outlets | |
| 9358-3000 | 935 | 14/3 SOW | 50' | NEMA 5-15 | • | -- | |
| 9358-3000 | 92433 | 12/3 SOW | 50' | NEMA 5-15 | • | -- | |
| 9358-3000 | 9253 | 14/3 SOW | 25' | NEMA 5-15 | • | -- | |
| 9358-3000 | 9383 | 12/3 SOW | 25' | NEMA 5-15 | • | -- | |
| 9358-3070G | 9358 | 14/3 SOW | 50' | NEMA 5-15 | -- | • | |
| 92433-3070G | 92433 | 12/3 SOW | 50' | NEMA 5-15 | -- | • | |
| 9253-3070G | 9253 | 14/3 SOW | 25' | NEMA 5-15 | -- | • | |
| 9383-3070G | 9383 | 12/3 SOW | 25' | NEMA 5-15 | -- | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
Industrial Duty Cord Reels w/ Pendant Outlet Box 20A
| Part No. | Base Reel | Cord Type | Cord Length | Configuration | Two Duplex Outlets | GFCI Duplex Outlets | |
| 9383-3080 | 9383 | 12/3 SOW | 50' | NEMA 5-20 | • | -- | |
| 92433-3080 | 92433 | 12/3 SOW | 25' | NEMA 5-20 | • | -- | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
