Cord Reels | Industrial Duty Cord Reels w/ Connector
Cord Reels
Cord Reel w/ Pendant Drop Box
- Containerized mainspring
- NEMA-4 enclosure
- Anti-lock-out ratchet system
- Modular collector rings
Industrial-duty cable reels are spring-powered reels made of precision electrical and mechanical components to accommodate up to 97.5m (320') of 16 AWG cable or up to 54.9m (180') of 1 AWG cable. Cable reels have NEMA-4 rating for indoor and outdoor use to protect against water and corrosion for weather and dust resistance. Precision collector rings can be specified for up to 36 conductors.
Reels (PDF) (1053 KB)

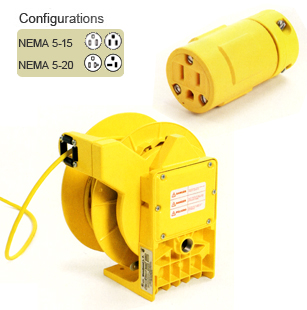

Industrial Duty Cord Reels w/ Connector
| Part No. | Base Reel | Cord Type | Cord Length | Configuration | AMPS/VOLTS | ||
| 9228-1547 | 9228 | 16/3 SOW | 50' | NEMA 5-15 | 15A/125V | ||
| 9358-1547 | 9358 | 14/3 SOW | 50' | NEMA 5-15 | 15A/125V | ||
| 92433-1547 | 92433 | 12/3 SOW | 50' | NEMA 5-15 | 15A/125V | ||
| 9224-1547 | 9224 | 16/3 SOW | 30' | NEMA 5-15 | 15A/125V | ||
| 9253-1547 | 9253 | 14/3 SOW | 25' | NEMA 5-15 | 15A/125V | ||
| 9383-1547 | 9383 | 12/3 SOW | 25' | NEMA 5-15 | 15A/125V | ||
| 92433-1547 | 92433 | 12/3 SOW | 50' | NEMA 5-20 | 20A/125V | ||
| 9383-1547 | 9383 | 12/3 SOW | 25' | NEMA 5-20 | 20A/125V | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
