Cord Reels
Industrial Duty Cord Reels
- Containerized mainspring
- NEMA-4 enclosure
- Anti-lock-out ratchet system
- Modular collector rings

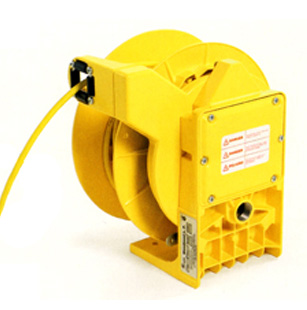

Industrial-duty cable reels are spring-powered reels made of precision electrical and mechanical components to accommodate up to 97.5m (320') of 16 AWG cable or up to 54.9m (180') of 1 AWG cable. Cable reels have NEMA-4 rating for indoor and outdoor use to protect against water and corrosion for weather and dust resistance. Precision collector rings can be specified for up to 36 conductors.
Reels (PDF) (1053 KB)
Industrial Duty Cord Reels 12 AWG
| Part No. | Conductors | AMPS | Cord Length | Cord Range | |||
| 9242 | 3 | 18A | 25' | -- | |||
| 92434 | 3 | 18A | 50' | -- | |||
| 92444 | 4 | 18A | 25' | -- | |||
| 92464 | 6 | 14A | 45' | -- | |||
| 095104203 | 3 | 18A | -- | up to 30' | |||
| 095106203 | 3 | 18A | -- | 30'-40' | |||
| 095104204 | 4 | 14A | -- | up to 30' | |||
| 095103204 | 6 | 14A | -- | Up to 20' | |||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
