30 Amp Receptacles


Woodhead meets your receptacle needs head-on. Single, duplex or motor-based receptacles for wet abusive enviornments are covered by Watertite product solutions while general industrial applications are well served by nylon Safeway receptacles. Product photos are intended to show device style only, and are not intended to reflect indicated configurations.

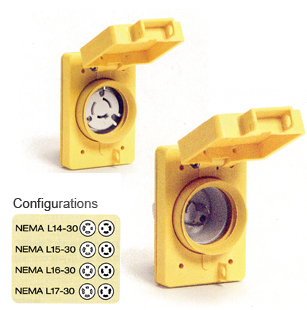

(part nos.67W74 and 66W74 pictured on right)

30 Amp Wiring Devices (PDF) (372 KB)

WATERTITE® Receptacles with Flip Coverplates
Single
Flip Lid
Flip Lid
w/ Male Receptacle
Connector for
Male Receptacle
Voltage Locking
Blade
NEMA
Configuration
69W74 68W74 29W74MB 125V/250V NEMA L14-30
69W75 68W75 29W75MB 250V, 3ø NEMA L15-30
69W76 68W76 29W76MB 480V, 3ø NEMA L16-30
69W77 68W77 29W77MB 600V, 3ø NEMA L17-30
SAFEWAY® Receptacles and Inlets
Flanged
Inlet
Flanged
Receptacle
Single
Receptacle
Voltage Locking
Blade
NEMA
Configuration
2874MB 2974MB 4974 125V/250V NEMA L14-30
2875MB 2974MB 4975 250V, 3ø NEMA L15-30
2876MB 2974MB 4976 480V, 3ø NEMA L16-30
2877MB 2974MB -- 600V, 3ø NEMA L17-30
