30 Amp WATERTITE® Cordsets
125V/250V - 3 Pole, 3 Wire - Non-NEMA Locking
120V/280V - 4 Pole, 4 Wire - Non-NEMA Locking
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

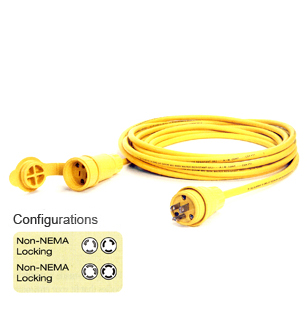

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp WATERTITE® Cordsets 125V/250V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W08A 103 | 28W08A 123 | 125V/250V | Non-NEMA Locking | 25 FT | ||
| 28W08A 103BLK | 28W08A 123BLK | 125V/250V | Non-NEMA Locking | 25 FT | • | |
| 28W08B 103 | 28W08B 123 | 125V/250V | Non-NEMA Locking | 50 FT | ||
| 28W08B 103BLK | 28W08B 123BLK | 125V/250V | Non-NEMA Locking | 50 FT | • | |
| 28W08D 103 | 28W08D 123 | 125V/250V | Non-NEMA Locking | 100 FT | ||
| 28W08D 103BLK | 28W08D 123BLK | 125V/250V | Non-NEMA Locking | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 120V/280V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W09A 104 | 28W09A 123 | 120V/280V | Non-NEMA Locking | 25 FT | ||
| 28W09A 104BLK | 28W09A 123BLK | 120V/280V | Non-NEMA Locking | 25 FT | • | |
| 28W09B 104 | 28W09B 123 | 120V/280V | Non-NEMA Locking | 50 FT | ||
| 28W09B 104BLK | 28W09B 123BLK | 120V/280V | Non-NEMA Locking | 50 FT | • | |
| 28W09D 104 | 28W09D 123 | 120V/280V | Non-NEMA Locking | 100 FT | ||
| 28W09D 104BLK | 28W09D 123BLK | 120V/280V | Non-NEMA Locking | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
