20 Amp WATERTITE® & SAFEWAY® Receptacles

125V/250V - 3 Pole, 4 Wire - NEMA L14-20
250V - 3 Pole, 4 Wire, 3ø - NEMA L15-20
480V - 3 Pole, 4 Wire, 3ø - NEMA L16-20

20 Amp Receptacles

Woodhead meets your receptacle needs head-on. Single, duplex or motor-based receptacles for wet abusive enviornments are covered by Watertite product solutions while general industrial applications are well served by nylon Safeway receptacles. Product photos are intended to show device style only, and are not intended to reflect indicated configurations.

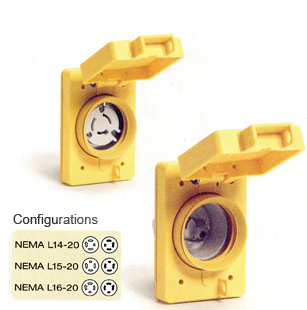

(part nos.67W74 and 66W74 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

<< Back to 20 Amp Receptacles

WATERTITE® Receptacles with Flip Coverplates

Single Flip Lid	Flip Lid w/ Male Receptacle	Connector for Male Receptacle	Voltage	Locking Blade	NEMA Configuration
67w74	66w74	27W74MB	125V/250V	•	NEMA L14-20
67w75	66w75	27W75MB	250V, 3ø	•	NEMA L15-20
67w76	66w76	27W76MB	480V, 3ø	•	NEMA L16-20

SAFEWAY® Receptacles and Inlets

Flanged Inlet	Flanged Receptacle	Single Receptacle	Voltage	Locking Blade	NEMA Configuration
2674MB	2774MB	4774	125V/250V	•	NEMA L14-20
2675MB	2775MB	4775	250V, 3ø	•	NEMA L15-20
2676MB	2776MB	4776	480V, 3ø	•	NEMA L16-20
