20 Amp WATERTITE® & SAFEWAY® Receptacles

125V/208V - 4 Pole, 5 Wire, 3ø- NEMA L21-20
277V/480V - 4 Pole, 5 Wire, 3ø - NEMA L22-20
347V/600V - 4 Pole, 5 Wire, 3ø - NEMA L23-20

20 Amp Receptacles

Woodhead meets your receptacle needs head-on. Single, duplex or motor-based receptacles for wet abusive enviornments are covered by Watertite product solutions while general industrial applications are well served by nylon Safeway receptacles. Product photos are intended to show device style only, and are not intended to reflect indicated configurations.

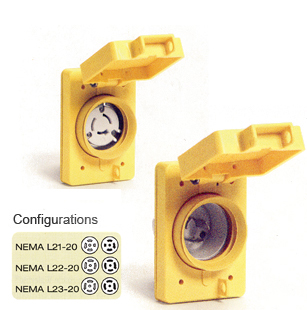

(part nos.67W74 and 66W74 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

<< Back to 20 Amp Receptacles

WATERTITE® Receptacles with Flip Coverplates

Single Flip Lid	Flip Lid w/ Male Receptacle	Connector for Male Receptacle	Voltage	Locking Blade	NEMA Configuration
67W81	66W81	27w81MB	125V/208V, 3ø	•	NEMA l21-20
67W82	66W82	27w82MB	277V/480V, 3ø	•	NEMA l22-20
67W83	66W83	27w83MB	347V/600V, 3ø	•	NEMA l23-20

SAFEWAY® Receptacles and Inlets

Flanged Inlet	Flanged Receptacle	Voltage	Locking Blade	NEMA Configuration
2681MB	2781MB	125V/208V, 3ø	•	NEMA l21-20
2682MB	2782MB	277V/480V, 3ø	•	NEMA l22-20
2683MB	2783MB	347V/600V, 3ø	•	NEMA l23-20
