20 Amp WATERTITE® & SAFEWAY® Receptacles
125V/250V - 3 Pole, 3 Wire - Non-NEMA
250V Grounding Tab - 3 Pole, 3 Wire - Non-NEMA Locking
120V/208V - 4 Pole, 4 Wire - Non-NEMA Locking
20A/250V, 10A/600V - 4 Pole, 5 Wire - Non-NEMA Locking
20 Amp Receptacles
Woodhead meets your receptacle needs head-on. Single, duplex or motor-based receptacles for wet abusive enviornments are covered by Watertite product solutions while general industrial applications are well served by nylon Safeway receptacles. Product photos are intended to show device style only, and are not intended to reflect indicated configurations.

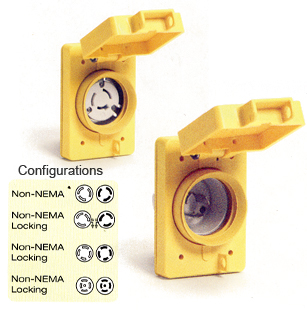

(part nos.67W08 and 66W08 pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
WATERTITE® Receptacles with Flip Coverplates
| Single Flip Lid |
Flip Lid w/ Male Receptacle |
Connector for Male Receptacle |
Voltage | Locking Blade |
NEMA Configuration |
| 67w08 | 66w08 | 27W08MB | 125V/250V | • | Non-NEMA |
| -- | -- | 27W08G0B | 125V/250V Grounding Tab | • | Non-NEMA Locking |
| 67w09 | 66w09 | 27W09MB | 120V/208V | • | Non-NEMA Locking |
| 67w10 | 66w10 | 27W10MB | 20A/250V, 10A/600V | • | Non-NEMA Locking |
