20 Amp Plugs and Connectors


Watertite devices set the standard for the roughest, wettest, and most abrasive of enviornments. When properly mated with corresponding connectors, Watertite devices form an enclosure that meets the requirements of NEMA type 4, 4X 6 and 6P, IP65, 66 and 67 and can resist high pressure hose-down up to 1,000 psi. Additional features include: unique multiple ring seal that locks snugly, protecting against moisture and contaminants, sturdy compression-type cord grip that provides 205 lbs. of pull-out strength, and a protective closure cap that seals the connector when it is not in use. Product photos are intended to show device only and are not intended to reflect indicated configurations.

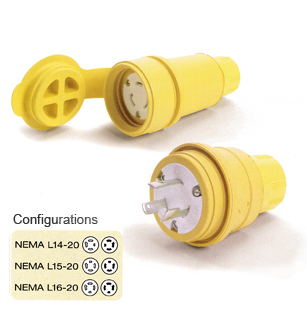

(part no. 15W48 and 14W48 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

20 Amp WATERTITE® Plugs and Connectors
Connector
Part No.
Plug
Part No.
Configuration Voltage Locking
Blade
Cord Grip
Body Size
27W74 26W74 NEMA L14-20 125V/250V f3 3/4"
27W75 26W75 NEMA L15-20 250V, 3ø f3 3/4"
27W76 26W76 NEMA L16-20 480V, 3ø f3 3/4"
CLICK ON A PART NUMBER FOR MORE OPTIONS
