20 Amp WATERTITE® Cordsets

250V - 2 Pole, 3 Wire - NEMA 6-20 / NEMA L6-20
277V - 2 Pole, 3 Wire - NEMA L7-20

250V - 2-Pole, 3-Wire
277V - 2 Pole, 3-Wire

Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

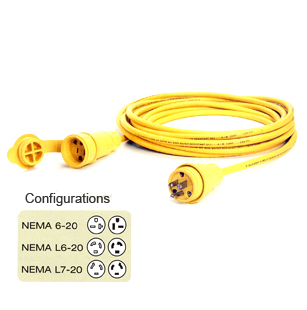

(part no. 14W33_143 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

<< Back to 20 Amp Cordsets

20 Amp WATERTITE® Cordsets

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
14W48A 143	14W48A 123	250V	NEMA 6-20	25 FT
14W48A 143IN	14W48A 123IN	250V	NEMA 6-20	25 FT	•
14W48A 143BLK	14W48A 123BLK	250V	NEMA 6-20	25 FT		•
14W48B 143	14W48B 123	250V	NEMA 6-20	50 FT
14W48B 143IN	14W48B 123IN	250V	NEMA 6-20	50 FT	•
14W48B 143BLK	14W48B 123BLK	250V	NEMA 6-20	50 FT		•
14W48D 143	14W48D 123	250V	NEMA 6-20	100 FT
14W48D143IN	14W48D 123IN	250V	NEMA 6-20	100 FT	•
14W48D 143BLK	14W48D 123BLK	250V	NEMA 6-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp WATERTITE® Cordsets with Locking Blade 250V

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
26W48A 143	26W48A 123	250V	NEMA L6-20	25 FT
26W48A 143IN	26W48A 123IN	250V	NEMA L6-20	25 FT	•
26W48A 143BLK	26W48A 123BLK	250V	NEMA L6-20	25 FT		•
26W48B 143	26W48B 123	250V	NEMA L6-20	50 FT
26W48B 143IN	26W48B 123IN	250V	NEMA L6-20	50 FT	•
26W48B 143BLK	26W48B 123BLK	250V	NEMA L6-20	50 FT		•
26W48D 143	26W48D 123	250V	NEMA L6-20	100 FT
26W48D 143IN	26W48D 123IN	250V	NEMA L6-20	100 FT	•
26W48D 143BLK	26W48D 123BLK	250V	NEMA L6-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp WATERTITE® Cordsets with Locking Blade 277V

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
26W49A 143	26W49A 123	277V	NEMA L7-20	25 FT
26W49A 143IN	26W49A 123IN	277V	NEMA L7-20	25 FT	•
26W49A 143BLK	26W49A 123BLK	277V	NEMA L7-20	25 FT		•
26W49B 143	26W49B 123	277V	NEMA L7-20	50 FT
26W49B 143IN	26W49B 123IN	277V	NEMA L7-20	50 FT	•
26W49B 143BLK	26W49B 123BLK	277V	NEMA L7-20	50 FT		•
26W49D 143	26W49D 123	277V	NEMA L7-20	100 FT
26W49D 143IN	26W49D 123IN	277V	NEMA L7-20	100 FT	•
26W49D 143BLK	26W49D 123BLK	277V	NEMA L7-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp WATERTITE® Molded Cordsets

Molded Y Cordsets	Molded W Cordsets	Voltage	NEMA Configuration	Inline GFCI
14W48-Y	14W48-W	250V	NEMA 6-20
14W48-Y-IN	14W48-W-IN	250V	NEMA 6-20	•
CLICK ON A PART NUMBER FOR MORE OPTIONS
