20 Amp WATERTITE® Cordsets
125V/208V - 4 Pole, 5 Wire, 3ø- NEMA L21-20
277V/480V - 4 Pole, 5 Wire, 3ø - NEMA L22-20
347V/600V - 4 Pole, 5 Wire, 3ø - NEMA L23-20
20 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

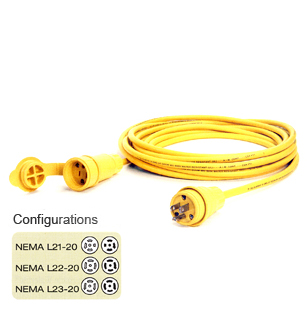

(part no. 26W33_143 pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
20 Amp WATERTITE® Cordsets 125V/208V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 26W81A 125 | 125V/208V, 3ø | NEMA l21-20 | 25 FT | |||
| 26W81A 125BLK | 125V/208V, 3ø | NEMA l21-20 | 25 FT | • | ||
| 26W81B 125 | 125V/208V, 3ø | NEMA l21-20 | 50 FT | |||
| 26W81B 125BLK | 125V/208V, 3ø | NEMA l21-20 | 50 FT | • | ||
| 26W81D 125 | 125V/208V, 3ø | NEMA l21-20 | 100 FT | |||
| 26W81D 125BLK | 125V/208V, 3ø | NEMA l21-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp WATERTITE® Cordsets 277V/480V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 26W82A 125 | 277V/480V, 3ø | NEMA L22-20 | 25 FT | |||
| 26W82A 125BLK | 277V/480V, 3ø | NEMA L22-20 | 25 FT | • | ||
| 26W82B 125 | 277V/480V, 3ø | NEMA L22-20 | 50 FT | |||
| 26W823B 125BLK | 277V/480V, 3ø | NEMA L22-20 | 50 FT | • | ||
| 26W82D 125 | 277V/480V, 3ø | NEMA L22-20 | 100 FT | |||
| 26W82D 125BLK | 277V/480V, 3ø | NEMA L22-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp WATERTITE® Cordsets 347V/600V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 26W83A 125 | 347V/600V, 3ø | NEMA L23-20 | 25 FT | |||
| 26W83A 125BLK | 347V/600V, 3ø | NEMA L23-20 | 25 FT | • | ||
| 26W83B 125 | 347V/600V, 3ø | NEMA L23-20 | 50 FT | |||
| 26W83B 125BLK | 347V/600V, 3ø | NEMA L23-20 | 50 FT | • | ||
| 26W83D 125 | 347V/600V, 3ø | NEMA L23-20 | 100 FT | |||
| 26W83D 125BLK | 347V/600V, 3ø | NEMA L23-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
