20 Amp WATERTITE® Cordsets
125V/250V - 3-Pole, 3-Wire - Non-NEMA
120V/208V - 4-Pole, 4-Wire - Non-NEMA Locking
20 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

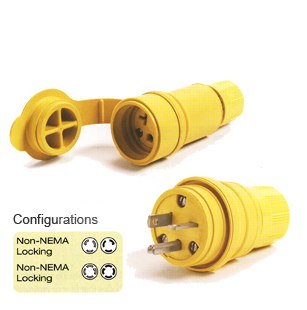

(part no. 14W33_143 pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
20 Amp WATERTITE® Cordsets
| 14 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 26W08A 143 | 26W08A 123 | 125V/250V | Non-NEMA | 25 FT | ||
| 26W08A 143IN | 26W08A 123IN | 125V/250V | Non-NEMA | 25 FT | • | |
| 26W08A 143BLK | 26W08A 123BLK | 125V/250V | Non-NEMA | 25 FT | • | |
| 26W08B 143 | 26W08B 123 | 125V/250V | Non-NEMA | 50 FT | ||
| 26W08B 143IN | 26W08B 123IN | 125V/250V | Non-NEMA | 50 FT | • | |
| 26W08B 143BLK | 26W08B 123BLK | 125V/250V | Non-NEMA | 50 FT | • | |
| 26W08D 143 | 26W08D 123 | 125V/250V | Non-NEMA | 100 FT | ||
| 26W08D143IN | 26W08D 123IN | 125V/250V | Non-NEMA | 100 FT | • | |
| 26W08D 143BLK | 26W08D 123BLK | 125V/250V | Non-NEMA | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp WATERTITE® Cordsets with Locking Blade
| 14 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 26W09A 144 | 26W09A 124 | 120V/208V | Non-NEMA Locking | 25 FT | ||
| 26W09A 144IN | 26W09A 124IN | 120V/208V | Non-NEMA Locking | 25 FT | • | |
| 26W09A 144BLK | 26W09A 124BLK | 120V/208V | Non-NEMA Locking | 25 FT | • | |
| 26W09B 144 | 26W09B 124 | 120V/208V | Non-NEMA Locking | 50 FT | ||
| 26W09B 144IN | 26W09B 124IN | 120V/208V | Non-NEMA Locking | 50 FT | • | |
| 26W09B 144BLK | 26W09B 124BLK | 120V/208V | Non-NEMA Locking | 50 FT | • | |
| 26W09D 144 | 26W09D 124 | 120V/208V | Non-NEMA Locking | 100 FT | ||
| 26W09D 144IN | 26W09D 124IN | 120V/208V | Non-NEMA Locking | 100 FT | • | |
| 26W09D 144BLK | 26W09D 124BLK | 120V/208V | Non-NEMA Locking | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
