15 Amp WATERTITE® Cordsets
125V - 2 Pole, 2 Wire - NEMA 1-15 / NEMA L1-15
125V - 2-Pole, 2-Wire
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

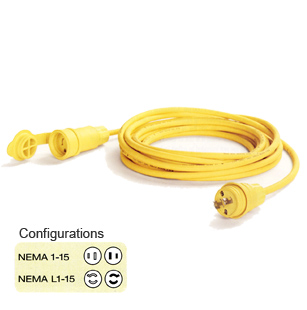

(part no. 14W04A 162 pictured on right)
15 Amp Wiring Devices (PDF) (372 KB)
15 Amp WATERTITE® Cordsets
16 Gauge SOW Cordsets |
14 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
14W04A 162 | 14W04A 142 | 125V | NEMA 1-15 | 25 FT | ||
14W04A 162IN | 14W04A 142IN | 125V | NEMA 1-15 | 25 FT | • | |
14W04A 162BLK | 14W04A 142BLK | 125V | NEMA 1-15 | 25 FT | • | |
14W04B 162 | 14W04B 142 | 125V | NEMA 1-15 | 50 FT | ||
14W04B 162IN | 14W04B 142IN | 125V | NEMA 1-15 | 50 FT | • | |
14W04B 162BLK | 14W04B 142BLK | 125V | NEMA 1-15 | 50 FT | • | |
14W04D 162 | 14W04D 142 | 125V | NEMA 1-15 | 100 FT | ||
14W04D162IN | 14W04D 142IN | 125V | NEMA 1-15 | 100 FT | • | |
14W04D 162BLK | 14W04D 142BLK | 125V | NEMA 1-15 | 100 FT | • | |
24W04A 162 | 24W04A 142 | 125V | NEMA 1-15 | 25 FT | ||
24W04A 162IN | 24W04A 142IN | 125V | NEMA 1-15 | 25 FT | • | |
24W04A 162BLK | 24W04A 142BLK | 125V | NEMA 1-15 | 25 FT | • | |
24W04B 162 | 24W04B 142 | 125V | NEMA 1-15 | 50 FT | ||
24W04B 162IN | 24W04B 142IN | 125V | NEMA 1-15 | 50 FT | • | |
24W04B 162BLK | 24W04B 142BLK | 125V | NEMA 1-15 | 50 FT | • | |
24W04D 162 | 24W04D 142 | 125V | NEMA 1-15 | 100 FT | ||
24W04D162IN | 24W04D 142IN | 125V | NEMA 1-15 | 100 FT | • | |
24W04D 162BLK | 24W04D 142BLK | 125V | NEMA 1-15 | 100 FT | • |
