20 Amp SUPER-SAFEWAY® Cordsets

250V - 2 Pole, 3 Wire - NEMA 6-20 / NEMA L6-20
277V - 2 Pole, 3 Wire - NEMA L7-20

250V - 2-Pole, 3-Wire
277V - 2 Pole, 3-Wire

Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

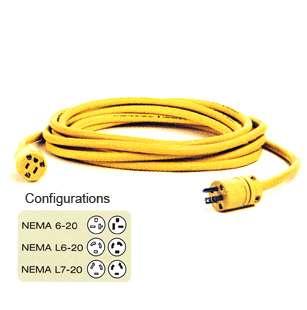

(part no. 1448_143 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

<< Back to 20 Amp Cordsets

20 Amp SUPER-SAFEWAY® Cordsets

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
1448A 143	1448A 123	250V	NEMA 6-20	25 FT
1448A 143IN	1448A 123IN	250V	NEMA 6-20	25 FT	•
1448A 143BLK	1448A 123BLK	250V	NEMA 6-20	25 FT		•
1448B 143	1448B 123	250V	NEMA 6-20	50 FT
1448B 143IN	1448B 123IN	250V	NEMA 6-20	50 FT	•
1448B 143BLK	1448B 123BLK	250V	NEMA 6-20	50 FT		•
1448D 143	1448D 123	250V	NEMA 6-20	100 FT
1448D143IN	1448D 123IN	250V	NEMA 6-20	100 FT	•
1448D 143BLK	1448D 123BLK	250V	NEMA 6-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp SUPER-SAFEWAY® Cordsets with Locking Blade 250V

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
2648A 143	2648A 123	250V	NEMA L6-20	25 FT
2648A 143IN	2648A 123IN	250V	NEMA L6-20	25 FT	•
2648A 143BLK	2648A 123BLK	250V	NEMA L6-20	25 FT		•
2648B 143	2648B 123	250V	NEMA L6-20	50 FT
2648B 143IN	2648B 123IN	250V	NEMA L6-20	50 FT	•
2648B 143BLK	2648B 123BLK	250V	NEMA L6-20	50 FT		•
2648D 143	2W48D 123	250V	NEMA L6-20	100 FT
2648D 143IN	2648D 123IN	250V	NEMA L6-20	100 FT	•
2648D 143BLK	2648D 123BLK	250V	NEMA L6-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp SUPER-SAFEWAY® Cordsets with Locking Blade 277V

14 Gauge SOW Cordsets	12 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
2649A 143	2649A 123	277V	NEMA L7-20	25 FT
2649A 143IN	2649A 123IN	277V	NEMA L7-20	25 FT	•
2649A 143BLK	2649A 123BLK	277V	NEMA L7-20	25 FT		•
2649B 143	2649B 123	277V	NEMA L7-20	50 FT
2649B 143IN	2649B 123IN	277V	NEMA L7-20	50 FT	•
2649B 143BLK	2649B 123BLK	277V	NEMA L7-20	50 FT		•
2649D 143	2649D 123	277V	NEMA L7-20	100 FT
2649D 143IN	2649D 123IN	277V	NEMA L7-20	100 FT	•
2649D 143BLK	2649D 123BLK	277V	NEMA L7-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp SUPER-SAFEWAY® Molded Cordsets

Molded Y Cordsets	Molded W Cordsets	Voltage	NEMA Configuration	Inline GFCI
1448-Y	1448-W	250V	NEMA 6-20
1448-Y-IN	1448-W-IN	250V	NEMA 6-20	•
CLICK ON A PART NUMBER FOR MORE OPTIONS
