20 Amp SUPER-SAFEWAY® Cordsets

125V - 2 Pole, 3 Wire - NEMA 5-20 / NEMA L5-20

125V - 2-Pole, 3-Wire

Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

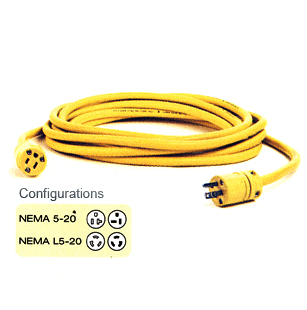

(part no. 1433_143 pictured on right)

20 Amp Wiring Devices (PDF) (372 KB)

<< Back to 20 Amp Cordsets

20 Amp SUPER-SAFEWAY® Cordsets

16 Gauge SOW Cordsets	14 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
1433A 143	1433A 123	125V	NEMA 5-20	25 FT
1433A 143IN	1433A 123IN	125V	NEMA 5-20	25 FT	•
1433A 143BLK	1433A 123BLK	125V	NEMA 5-20	25 FT		•
1433B 143	1433B 123	125V	NEMA 5-20	50 FT
1433B 143IN	1433B 123IN	125V	NEMA 5-20	50 FT	•
1433B 143BLK	1433B 123BLK	125V	NEMA 5-20	50 FT		•
1433D 143	1433D 123	125V	NEMA 5-20	100 FT
1433D143IN	1433D 123IN	125V	NEMA 5-20	100 FT	•
1433D 143BLK	1433D 123BLK	125V	NEMA 5-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS

20 Amp SUPER-SAFEWAY® Cordsets with Locking Blade

16 Gauge SOW Cordsets	14 Gauge SOW Cordsets	Voltage	NEMA Configuration	Cordset Length	Inline GFCI	UV Resistant Black
2647A 143	2647A 123	125V	NEMA L5-20	25 FT
2647A 143IN	2647A 123IN	125V	NEMA L5-20	25 FT	•
2647A 143BLK	2647A 123BLK	125V	NEMA L5-20	25 FT		•
2647B 143	2647B 123	125V	NEMA L5-20	50 FT
2647B 143IN	2647B 123IN	125V	NEMA L5-20	50 FT	•
2647B 143BLK	2647B 123BLK	125V	NEMA L5-20	50 FT		•
2647D 143	2647D 123	125V	NEMA L5-20	100 FT
2647D 143IN	2647D 123IN	125V	NEMA L5-20	100 FT	•
2647D 143BLK	2647D 123BLK	125V	NEMA L5-20	100 FT		•
CLICK ON A PART NUMBER FOR MORE OPTIONS
