20 Amp SUPER-SAFEWAY® Cordsets
125V/208V - 4 Pole, 5 Wire, 3ø - NEMA L21-20
277V/480V - 4 Pole, 5 Wire, 3ø - NEMA L22-20
347V/600V - 4 Pole, 5 Wire, 3ø - NEMA L23-20
Super-Safeway Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

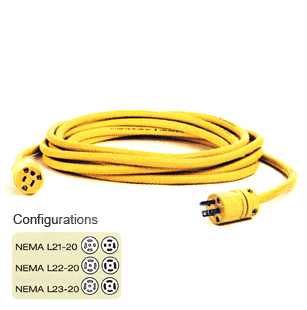

(part no. 1433_143 pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
20 Amp SUPER-SAFEWAY® Cordsets 125V/208V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 2681A 125 | 125V/208V, 3ø | NEMA L21-20 | 25 FT | |||
| 2681A 125BLK | 125V/208V, 3ø | NEMA L21-20 | 25 FT | • | ||
| 2681B 125 | 125V/208V, 3ø | NEMA L21-20 | 50 FT | |||
| 2681B 125BLK | 125V/208V, 3ø | NEMA L21-20 | 50 FT | • | ||
| 2681D 125 | 125V/208V, 3ø | NEMA L21-20 | 100 FT | |||
| 2681D 125BLK | 125V/208V, 3ø | NEMA L21-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp SUPER-SAFEWAY® Cordsets 277V/480V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 2682A 125 | 277V/480V, 3ø | NEMA L22-20 | 25 FT | |||
| 2682A 125BLK | 277V/480V, 3ø | NEMA L22-20 | 25 FT | • | ||
| 2682B 125 | 277V/480V, 3ø | NEMA L22-20 | 50 FT | |||
| 2682B 125BLK | 277V/480V, 3ø | NEMA L22-20 | 50 FT | • | ||
| 2682D 125 | 277V/480V, 3ø | NEMA L22-20 | 100 FT | |||
| 2682D 125BLK | 277V/480V, 3ø | NEMA L22-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp SUPER-SAFEWAY® Cordsets 347V/600V, 3ø
| 12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
||
| 2683A 125 | 347V/600V, 3ø | NEMA L23-20 | 25 FT | |||
| 2683A 125BLK | 347V/600V, 3ø | NEMA L23-20 | 25 FT | • | ||
| 2683B 125 | 347V/600V, 3ø | NEMA L23-20 | 50 FT | |||
| 2683B 125BLK | 347V/600V, 3ø | NEMA L23-20 | 50 FT | • | ||
| 2683D 125 | 347V/600V, 3ø | NEMA L23-20 | 100 FT | |||
| 2683D 125BLK | 347V/600V, 3ø | NEMA L23-20 | 100 FT | • | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
