20 Amp SUPER-SAFEWAY® & WATERTITE® Cordsets
125V/250V - 3 Pole, 3 Wire - Non-NEMA
120V/208V - 4 Pole, 4 Wire - Non-NEMA Locking
20 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

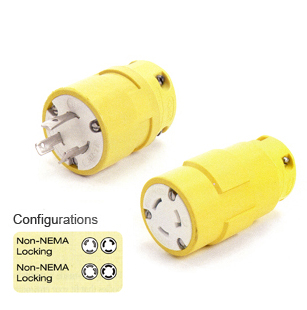

(part no. 2608_143 pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
20 Amp SUPER-SAFEWAY® Cordsets
| 14 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 2608A 143 | 2608A 123 | 125V | Non-NEMA | 25 FT | ||
| 2608A 143IN | 2608A 123IN | 125V | Non-NEMA | 25 FT | • | |
| 2608A 143BLK | 2608A 123BLK | 125V | Non-NEMA | 25 FT | • | |
| 2608B 143 | 2608B 123 | 125V | Non-NEMA | 50 FT | ||
| 2608B 143IN | 2608B 123IN | 125V | Non-NEMA | 50 FT | • | |
| 2608B 143BLK | 2608B 123BLK | 125V | Non-NEMA | 50 FT | • | |
| 2608D 143 | 2608D 123 | 125V | Non-NEMA | 100 FT | ||
| 2608D143IN | 2608D 123IN | 125V | Non-NEMA | 100 FT | • | |
| 2608D 143BLK | 2608D 123BLK | 125V | Non-NEMA | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
20 Amp WATERTITE® Cordsets with Locking Blade
| 14 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 2609A 144 | 2609A 124 | 125V | Non-NEMA Locking | 25 FT | ||
| 2609A 144IN | 2609A 124IN | 125V | Non-NEMA Locking | 25 FT | • | |
| 2609A 144BLK | 2609A 124BLK | 125V | Non-NEMA Locking | 25 FT | • | |
| 2609B 144 | 2609B 124 | 125V | Non-NEMA Locking | 50 FT | ||
| 2609B 144IN | 2609B 124IN | 125V | Non-NEMA Locking | 50 FT | • | |
| 2609B 144BLK | 2609B 124BLK | 125V | Non-NEMA Locking | 50 FT | • | |
| 2609D 144 | 2609D 124 | 125V | Non-NEMA Locking | 100 FT | ||
| 2609D 144IN | 2609D 124IN | 125V | Non-NEMA Locking | 100 FT | • | |
| 2609D 144BLK | 2609D 124BLK | 125V | Non-NEMA Locking | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
