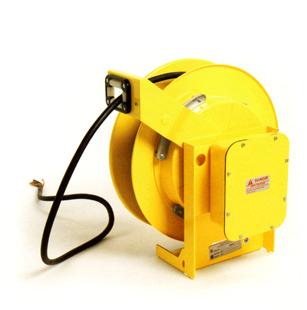

Heavy Duty Cord Reels | 20-70' - 14AWG
Heavy-Duty Cord Reels
Heavy Duty Cord Reels
- NEMA-4 enclosure
- 4lbs. retraction weight
- 600V rated SOW cable
Weather and dust resistant enclosures meet NEMA 4 rating for outdoor use. Rugged steel construction in a compact design. Quick change spring motor, long life containerized guide. Steel flange and stand, bronze ball bearings. Ratchet lock may be disengaged for constant tension, direct spring drive, maximum lifting speed of 150 f.p.m.
Reels (PDF) (1053 KB)
Heavy Duty Cord Reels 20-70' 14 AWG
| Part No. | Conductors | AMPS | Cord Length | Cord Range | |||
| 92532N | 3 | 15A | 70' | -- | |||
| 92542N | 4 | 12A | 70' | -- | |||
| 92562AN | 6 | 12A | 50' | -- | |||
| 92562BN | 6 | 12A | 70' | -- | |||
| 92582N | 8 | 10A | 60' | -- | |||
| 92502AN | 10 | 7A | 50' | -- | |||
| 92512AN | 12 | 7A | 20' | -- | |||
| 92512BN | 12 | 7A | 40' | -- | |||
| 10511303G0L000 | 3 | 15A | -- | up to 70' | |||
| 10511304G0L000 | 4 | 12A | -- | up to 70' | |||
| 10511306G0L000 | 6 | 12A | -- | up to 50' | |||
| 10512306G0L000 | 6 | 12A | -- | 50'-70' | |||
| 10512308G0L000 | 8 | 10A | -- | Up to 60' | |||
| 10512310G0L000 | 10 | 7A | -- | up to 50' | |||
| 10511312G0L000 | 12 | 7A | -- | up to 30' | |||
| 10512312G0L000 | 12 | 7A | -- | 30'-40' | |||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
