Hand Wind Cord Reels
910, 911, 912, 913, 914, 915, 916, & 920 Series
12/3 SOW
Hand Wind Cord Reels
- Heavy-duty steel design
- Large-spool design
- Steel-rod frame
Woodhead® heavy-duty hand-wind reels for storage applications are perfect for storing extension cords, power cables, ropes, hoses or for continuous power service. Hand-wind reels provide easier, more organized cable storage versus wrapping cable, eliminating cable knots and kinks. The heavy-duty hand-wind reels, robust steel construction protects service cords from damage.
Reels (PDF) (1053 KB)
Hand Wind Cord Reels with Receptacles
| Part No. | Unwound Cable Rating |
Cord | Cable Length | Receptacles | Flip Lids | GFCI Protection | Configuration | |

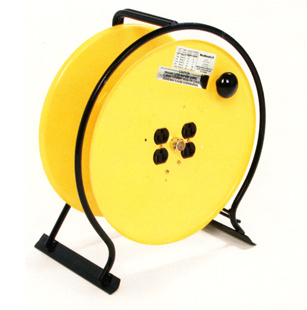

| 910 | 15A 125V | 12/3 SOW | -- | 4 | -- | -- | NEMA 5-15 | |
| 910D123 | 15A 125V | 12/3 SOW | 100' | 4 | -- | -- | NEMA 5-15 | |
| 910P123 | 15A 125V | 12/3 SOW | 150' | 4 | -- | -- | NEMA 5-15 | |
| 910T123 | 15A 125V | 12/3 SOW | 200' | 4 | -- | -- | NEMA 5-15 | |
| 911 | 15A 125V | 12/3 SOW | -- | 4 | -- | -- | NEMA L5-15 | |
| 911D123 | 15A 125V | 12/3 SOW | 100' | 4 | -- | -- | NEMA L5-15 | |
| 911P123 | 15A 125V | 12/3 SOW | 150' | 4 | -- | -- | NEMA L5-15 | |
| 911T123 | 15A 125V | 12/3 SOW | 200' | 4 | -- | -- | NEMA L5-15 | |
| 916 | 15A 125V | 12/3 SOW | -- | 4 | -- | • | NEMA 5-15 | |
| 916D123 | 15A 125V | 12/3 SOW | 100' | 4 | -- | • | NEMA 5-15 | |
| 916P123 | 15A 125V | 12/3 SOW | 150' | 4 | -- | • | NEMA 5-15 | |
| 916T123 | 15A 125V | 12/3 SOW | 200' | 4 | -- | • | NEMA 5-15 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Hand Wind Cord Reels with Covered Receptacles
| Part No. | Unwound Cable Rating |
Cord | Cable Length | Receptacles | Flip Lids | GFCI Protection | Configuration | |
| 910 | 20A 250V | 12/3 SOW | -- | 2 | • | -- | NEMA L2-20 | |
| 910D123 | 20A 250V | 12/3 SOW | 100' | 2 | • | -- | NEMA L2-20 | |
| 910P123 | 20A 250V | 12/3 SOW | 150' | 2 | • | -- | NEMA L2-20 | |
| 910T123 | 20A 250V | 12/3 SOW | 200' | 2 | • | -- | NEMA L2-20 | |
| 913 | 20A 125V/250V | 12/3 SOW | -- | 2 | • | -- | Non-NEMA Locking | |
| 913D123 | 20A 125V/250V | 12/3 SOW | 100' | 2 | • | -- | Non-NEMA Locking | |
| 913P123 | 20A 125V/250V | 12/3 SOW | 150' | 2 | • | -- | Non-NEMA Locking | |
| 913T123 | 20A 125V/250V | 12/3 SOW | 200' | 2 | • | -- | Non-NEMA Locking | |
| 914 | 20A 125V | 12/3 SOW | -- | 2 | • | -- | NEMA L5-20 | |
| 914D123 | 20A 125V | 12/3 SOW | 100' | 2 | • | -- | NEMA L5-20 | |
| 914P123 | 20A 125V | 12/3 SOW | 150' | 2 | • | -- | NEMA L5-20 | |
| 914T123 | 20A 125V | 12/3 SOW | 200' | 2 | • | -- | NEMA L5-20 | |
| 920 | -- | 12/3 SOW | -- | -- | -- | -- | -- | |
| 920D123 | -- | 12/3 SOW | 100' | -- | -- | -- | -- | |
| 920P123 | -- | 12/3 SOW | 150' | -- | -- | -- | -- | |
| 920T123 | -- | 12/3 SOW | 200' | -- | -- | -- | -- | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Hand Wind Cord Reels with Lead Cord, Plug, and Connector
