Festoon Systems
Festoon Systems
Festoon Systems

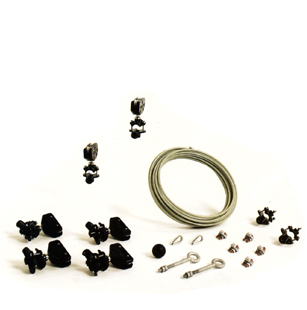

- Two clamps assemblies and end tie-off
- Hardware kit consisting of two eyebolts, five clamps, and one ballstop.
- Carriers with clamp assemblies
- Required length of nylon-covered wire rope
Festoon Power Cable Carrying Systems are ideal for powering horizontally moving hoists, small cranes and moving parts in machinery. Systems include end clamps, carriers, wire rope, and hardware. Light and durable, each system is packaged in it's own carrying/storage case.
Reels (PDF) (1053 KB)
Festoon Systems
| Part No. | Cable | 4 Loop Travel Distance |
3 Loop Travel Distance |
4 Loop System Length |
3 Loop System Length |
Storage Space | No. of Carriers |
| 95122 | Round | 20' | 15' | 22.5' | 17.5' | 0.84' | 2 |
| 95124 | Round | 35' | 26' | 38.1' | 29.1' | 1.40' | 4 |
| 95126 | Round | 50' | 37' | 53.7' | 40.7' | 1.97' | 6 |
| 95128 | Round | 65' | 48' | 69.2' | 52.2' | 2.53' | 8 |
| 95112 | Flat | 21' | 16' | 23.7' | 18.7' | 1.05' | 2 |
| 95114 | Flat | 36' | 27' | 39.4' | 30.5' | 1.75' | 4 |
| 95116 | Flat | 51' | 38' | 55.1' | 42.2' | 2.45' | 6 |
| 95118 | Flat | 66' | 50' | 70.8' | 54.8' | 3.15' | 8 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
Round Cable Components
| Part No. | Description | ||||||
| 95121 | Round cable carrier/clamp assembly | ||||||
| 95120 | Round cable Clamp Only | ||||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
Flat Cable Components
