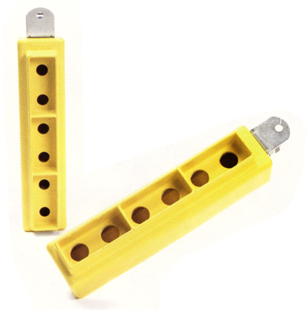

SUPER-SAFEWAY® Pendant Pushbutton Enclosures
Pendant Pushbutton Stations
Pendant Pushbutton Enclosures
Feature NEoTex rubber construction, strain-relief sealing grip. Metal suspension bracket for messenger cord, and internal ground strip. Accepts all standard 30mm or 22mm oil-tight pushbuttons, indicator lights, and selector switches. Switches not included. Wire mesh grip ordered serparately
Pushbutton/Test Instruments(PDF) (1053 KB)
Pushbutton Pendants
| Part No. | No. of Buttons | Opening Size | Cord Grip Size | Cord Grip Nut | Cord Diameter Range | ||
| 4002 | 2 | 30mm | F3 | Plastic | 0.375"-0.625" | ||
| 4003 | 3 | 30mm | F4 | Metal | 0.500"-0.845" | ||
| 4004 | 4 | 30mm | F4 | Metal | 0.500"-0.845" | ||
| 4005 | 5 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4006 | 6 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4007 | 7 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4008 | 8 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4009 | 9 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4010 | 10 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4011 | 11 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4012 | 12 | 30mm | F4 | Metal | 0.625"-1.000" | ||
| 4202 | 2 | 22mm | F3 | PLastic | 0.375"-0.625" | ||
| 4203 | 3 | 22mm | F4 | Metal | 0.500"-0.845" | ||
| 4204 | 4 | 22mm | F4 | Metal | 0.500"-0.845" | ||
| 4205 | 5 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| 4206 | 6 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| 4207 | 7 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| 4208 | 8 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| 4209 | 9 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| 4212 | 12 | 22mm | F4 | Metal | 0.625"-1.000" | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
Replacement Parts
| Part No. | Description | ||||||
| 71-4220 | Legend Kit | ||||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
