Multiple Outlet Boxes w/ Buss Bars | Multi-Tap Series
Portable Outlet Boxes
Multi-Tap Outlet Boxes
with Buss Bars

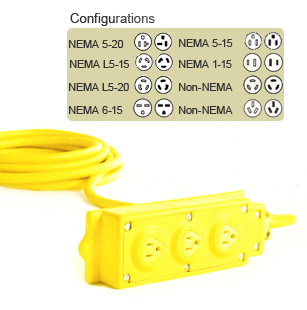

NEōTEX rubber bowith built-in copper buss bars. Molded-in cord grip and polycarbonate outlets. Rubber Plug included (plug same as receptacle). Cord diameter range (for box only) 0.325-0.655".
Multiple Outlet Boxes (PDF) (462 KB)
Multi-Tap Outlet Box with Buss Bars NEMA 1-15
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 31550 | -- | -- | • | 2P 2W 15A/125V | ||||
| 31550A122 | 12/3 SOW | 25' | -- | 2P 2W 15A/125V | ||||
| 31550B122 | 12/3 SOW | 50' | -- | 2P 2W 15A/125V | ||||
| 31550A142 | 14/3 SOW | 25' | -- | 2P 2W 15A/125V | ||||
| 31550B142 | 14/3 SOW | 50' | -- | 2P 2W 15A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars NEMA 5-15
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 31593 | -- | -- | • | 2P 3W 15A/125V | ||||
| 31593A123 | 12/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 31593B123 | 12/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| 31593A143 | 14/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 31593B143 | 14/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars NEMA 6-15
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 31594 | -- | -- | • | 2P 3W 15A/125V | ||||
| 31594A123 | 12/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 31594B123 | 12/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| 31594A143 | 14/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 31594B143 | 14/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars NEMA L5-15
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 32547 | -- | -- | • | 2P 3W 15A/125V | ||||
| 32547A123 | 12/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 32547B123 | 12/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| 32547A143 | 14/3 SOW | 25' | -- | 2P 3W 15A/125V | ||||
| 32547B143 | 14/3 SOW | 50' | -- | 2P 3W 15A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars NEMA 5-20
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 31565 | -- | -- | • | 2P 2W 20A/125V | ||||
| 31565A123 | 12/3 SOW | 25' | -- | 2P 2W 20A/125V | ||||
| 31565B123 | 12/3 SOW | 50' | -- | 2P 2W 20A/125V | ||||
| 31565A143 | 14/3 SOW | 25' | -- | 2P 2W 20A/125V | ||||
| 31565B143 | 14/3 SOW | 50' | -- | 2P 2W 20A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars NEMA L5-20
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 32747 | -- | -- | • | 2P 3W 20A/125V | ||||
| 32747A123 | 12/3 SOW | 25' | -- | 2P 3W 20A/125V | ||||
| 32747B123 | 12/3 SOW | 50' | -- | 2P 3W 20A/125V | ||||
| 32747A143 | 14/3 SOW | 25' | -- | 2P 3W 20A/125V | ||||
| 32747B143 | 14/3 SOW | 50' | -- | 2P 3W 20A/125V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars Non-NEMA
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 31552 | -- | -- | • | 3P 3W 15A/125V/10A/250V | ||||
| 31552A123 | 12/3 SOW | 25' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 31552B123 | 12/3 SOW | 50' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 31552A143 | 14/3 SOW | 25' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 31552B143 | 14/3 SOW | 50' | -- | 3P 3W 15A/125V/10A/250V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Multi-Tap Outlet Box with Buss Bars Non-NEMA Locking
| Part No. | Cord Type |
Cord Length |
Box Only | Rating | ||||
| 32553 | -- | -- | • | 3P 3W 15A/125V/10A/250V | ||||
| 32553A123 | 12/3 SOW | 25' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 32553B123 | 12/3 SOW | 50' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 32553A143 | 14/3 SOW | 25' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 32553B143 | 14/3 SOW | 50' | -- | 3P 3W 15A/125V/10A/250V | ||||
| 32708 | -- | -- | • | 3P 3W 20A/125V/250V | ||||
| 32708A123 | 12/3 SOW | 25' | -- | 3P 3W 20A/125V/250V | ||||
| 32708B123 | 12/3 SOW | 50' | -- | 3P 3W 20A/125V/250V | ||||
| 32708A143 | 14/3 SOW | 25' | -- | 3P 3W 20A/125V/250V | ||||
| 32708B143 | 14/3 SOW | 50' | -- | 3P 3W 20A/125V/250V | ||||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
