Inline GFCI | Molded Plug/Tri-Cord
Portable Outlet Boxes

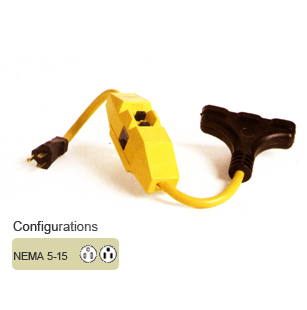

Molded Plug/Tri-Cord
Woodhead's Safe-T-Check GFCI products feature a manual reset which must be activated after a power outage or a ground fault condition, and serves to prevent the potential risk of unmonitored equipment start-up. Additionally, contacts are spring loaded to assure more consistant conductivity and exted the life of each gfci device. Woodhead offers a complete series of OSHA and NEC compliant portable 15, 20, and 30 Amp ground fault circuit interrupter products ranging from protected cordsets to outlet boxes and tri-tap outlets.
Inline GFCI (PDF) (193 KB)
Molded Plug/Tri-Cord
Part No. | AMPS | HZ | VOLTS | Cord Type |
Cord Length |
NEMA Configuration |
15050-3TT | 15A | 50/60 HZ | 120 VAC | 12/3 SJTW | 2' | NEMA 5-15 |
15050-6TT | 15A | 50/60 HZ | 120 VAC | 12/3 SJTW | 6' | NEMA 5-15 |
15050-25TT | 15A | 50/60 HZ | 120 VAC | 12/3 SJTW | 25' | NEMA 5-15 |
15050-50TT | 15A | 50/60 HZ | 120 VAC | 12/3 SJTW | 50' | NEMA 5-15 |
CLICK ON A PART NUMBER FOR MORE OPTIONS |
