GFCI Outlet Box


Woodhead's Safe-T-Check GFCI attachable plug products feature a manul resetwhich must be activated after a power outage or a ground fault condition, and serves to prevent the potential risk of unmonitored equipment start-up. Additionally, contacts are spring-loaded to assure more consitant conductivity and exted the life of each GFCI device. Woodhead offers a complete line of OSHA and NEC conmpliant portable 15 amp ground fault circuit interrupter plug products ranging from protected cordsets to outlet boxes.

GFCI Plugs (PDF) (171 KB)

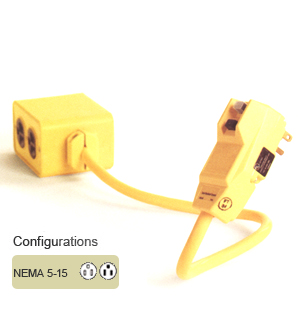

GFCI Plug Outlet Box
Part No. AMPS HZ VOLTS Cord
Type
Cord
Length
Weather
Resistant
NEMA
Configuration
15053W-2 15 A 50/60 HZ 120 VAC 12/3 SJTW 18" NEMA 5-15
15053W-25 15 A 50/60 HZ 120 VAC 12/3 SJTW 25' NEMA 5-15
15053W-50 15 A 50/60 HZ 120 VAC 12/3 SJTW 50' NEMA 5-15
15053-2 15 A 50/60 HZ 120 VAC 12/3 SJTW 18" -- NEMA 5-15
15053-25 15 A 50/60 HZ 120 VAC 12/3 SJTW 25' -- NEMA 5-15
15053-50 15 A 50/60 HZ 120 VAC 12/3 SJTW 50' -- NEMA 5-15
CLICK ON A PART NUMBER FOR MORE OPTIONS
