Gfci plugs

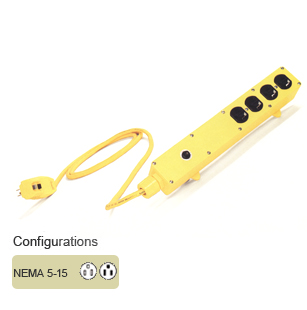

Multi-Tap GFCI Plug


Woodhead's Safe-T-Check GFCI attachable plug products feature a manul resetwhich must be activated after a power outage or a ground fault condition, and serves to prevent the potential risk of unmonitored equipment start-up. Additionally, contacts are spring-loaded to assure more consitant conductivity and exted the life of each GFCI device. Woodhead offers a complete line of OSHA and NEC conmpliant portable 15 amp ground fault circuit interrupter plug products ranging from protected cordsets to outlet boxes.

PDF document GFCI Plugs (PDF) (171 KB)

3500s
Multi-Tap GFCI Boxes
Part No. AMPS HZ VOLTS Surge
Protection
GFCI
Protection
Number of
Duplex
NEMA
Configuration
3500S 15 A 50/60 HZ 120 VAC -- 2 NEMA 5-15
3500PLG 15 A 50/60 HZ 120 VAC -- 2 NEMA 5-15
3500SPLG 15 A 50/60 HZ 120 VAC 2 NEMA 5-15
3510S 15 A 50/60 HZ 120 VAC -- 3 NEMA 5-15
3100PLG 15 A 50/60 HZ 120 VAC -- 3 NEMA 5-15
3510SPLG 15 A 50/60 HZ 120 VAC 3 NEMA 5-15
CLICK ON A PART NUMBER FOR MORE OPTIONS
