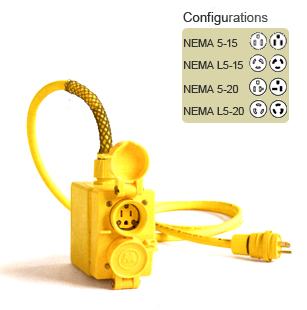

Watertite GFCI Duplex FD Outlet Box
Woodhead offers cost effective GFCI protection featuring ground continuity monitors and duplex receptacles for either industrial, heavy-duty use or wet/damp locations. One side of the enclosure accommodates an open-neutral sensing relay which detects and prevents operation under life-threatening conditions. MAX-LOC cord grip is standard on both series of boxes and the GFCI protected FD outlet box features additional wire mesh strain relief.
GFCI Outlet Boxes (PDF) (608 KB)
WATERTITE® GFCI Duplex FD Outlet Box
| Part No. | AMPS | HZ | VOLTS | Cord Type | Cord Length | Ground Continuity Monitor |
Cord, Receptacle, and Plug |
NEMA Configuration |
| 3301GF | 15 A | 50/60 HZ | 120 VAC | -- | -- | -- | -- | NEMA 5-15 |
| 3301GFL143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 6' | -- | • | NEMA 5-15 |
| 3301GFA143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 25' | -- | • | NEMA 5-15 |
| 3301GFB143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 50' | -- | • | NEMA 5-15 |
| 3301GFD143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 100' | -- | • | NEMA 5-15 |
| 3301GGFL143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 6' | • | • | NEMA 5-15 |
| 3301GGFA143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 25' | • | • | NEMA 5-15 |
| 3301GGFB143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 50' | • | • | NEMA 5-15 |
| 3301GGFD143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 100' | • | • | NEMA 5-15 |
| 3302GF | 15 A | 50/60 HZ | 120 VAC | -- | -- | -- | -- | NEMA L5-15 |
| 3302GFL143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 6' | -- | • | NEMA L5-15 |
| 3302GFA143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 25' | -- | • | NEMA L5-15 |
| 3302GFB143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 50' | -- | • | NEMA L5-15 |
| 3302GFD143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 100' | -- | • | NEMA L5-15 |
| 3302GGFL143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 6' | • | • | NEMA L5-15 |
| 3302GGFA143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 25' | • | • | NEMA L5-15 |
| 3302GGFB143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 50' | • | • | NEMA L5-15 |
| 3302GGFD143 | 15 A | 50/60 HZ | 120 VAC | 14/3 SOOW | 100' | • | • | NEMA L5-15 |
| 3304GF | 20 A | 50/60 HZ | 120 VAC | -- | -- | -- | -- | NEMA 5-20 |
| 3304GFL123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 6' | -- | • | NEMA 5-20 |
| 3304GFA123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 25' | -- | • | NEMA 5-20 |
| 3304GFB123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 50' | -- | • | NEMA 5-20 |
| 3304GFD123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 100' | -- | • | NEMA 5-20 |
| 3304GGFL123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 6' | • | • | NEMA 5-20 |
| 3304GGFA123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 25' | • | • | NEMA 5-20 |
| 3304GGFB123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 50' | • | • | NEMA 5-20 |
| 3304GGFD123 | 20 A | 50/60 HZ | 120 VAC | 12/3 SOOW | 100' | • | • | NEMA 5-20 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
