Wide Area Lamps | Wet Location - HID Lighting - 70W, 100W
Wide Area Lamps
High Pressure Sodium Light
- 5-15 NEMA plug
- heavy duty mounting magnet
- single phase
- 100W
The need for temporary wide area lighting can arise in virtually any application. That is why Woodhead offers HID lighting in the form of the 100 watt high-pressure sodium and the 70 watt metal halide lights. These lights feature haevy-duty mounting magnets for easy installation and feed-through connector options for "daisy-chaining" lights together in wide area applications.

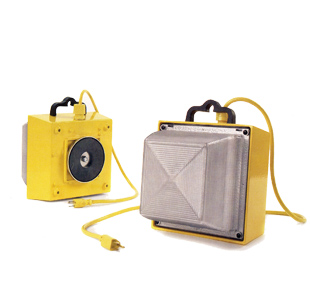

(part no.8565 pictured on right)
HID Lighting
| Part No. | Feed Thru Outlet |
Lamp Type |
Fixture Voltage |
Lamp Wattage |
Cord Type |
NEMA Configuration |
Primary Cord Length |
Secondary Cord Length |
| 8565 | High Pressure Sodium | 120V/60HZ | 100W | 16/3 SJT0W | NEMA 5-15 | 10' | -- | |
| 8565F | • | High Pressure Sodium | 120V/60HZ | 100W | 16/3 SJT0W | NEMA 5-15 | 10' | 1' |
| 8565-MH | Metal Halide | 70W | 100W | 16/3 SJT0W | NEMA 5-15 | 10' | -- | |
| 8565F-MH | • | Metal Halide | 70W | 100W | 16/3 SJT0W | NEMA 5-15 | 10' | 1' |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
