Low Voltage Workstation

  • Non-NEMA crowfoot recepticles
  • 400W maximum

Woodhead step-down transformers convert 120V power to 12V power for use in wet locations with 12V tools and lights. Low Votage workstations are exceptionally durable, easy to handle and service capable of long continuous operation in some of industry's most dmanding enviornments. To protect workers and comply with OSHA, the transforemers must be kept out of the wet location as 120V primary voltage should not be located in such areas. Circuit breakers on the low voltage workstation provide 15 amp protection.

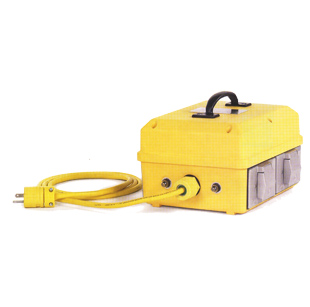

(part no. 1640-12 pictured on right)

Industrial Duty Handlamps (PDF) (372 KB)

Low Volatge Workstation
Part No. Primary
Voltage
Secondary
Voltage
Max Lamp
Voltage
Outlets Cord
Type
NEMA
Config.
Cord
Length
1640-12 120V/60HZ 12VAC 400W 4 60W07 NON_NEMA CROWFOOT 16/3 S00W NEMA 5-15 6'
1642-12 120V/60HZ 12VAC 200W 2 60W07 NON_NEMA CROWFOOT 16/3 S00W NEMA 5-15 6'
1641-12 120V/60HZ 12VAC 400W 1 60W08 NON_NEMA CROWFOOT 16/3 S00W NEMA 5-15 10'
1644-12 120V/60HZ 12VAC 200W 2 60W07 NON_NEMA CROWFOOT 16/3 S00W NEMA 5-15 6'
1643-12 120V/60HZ 12VAC 400W 4 60W07 NON_NEMA CROWFOOT 16/3 S00W NEMA 5-15 6'
CLICK ON A PART NUMBER FOR MORE OPTIONS
