Wide Area Lamps | Industrial Duty - Low Voltage Flourescent 60W, 64W, 80W
Wide Area Lamps
Flourescent Wide Area Twin Lamp
- Feed thru outlet
- 80W
- Low-voltage 12V AC/DC
Lighting requirements for wide area illumination are a bright spot for Woodhead Super-Safeway flourescent twin lamps. Bothe T8 and PL formats are ideal for lighting in tunnels, passageways, large tanks and vessels or wherever wide area industrial lighting is needed.

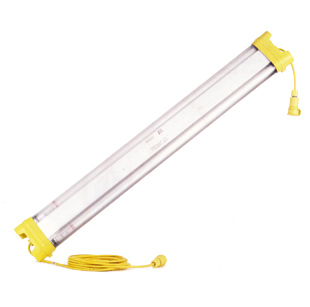

(part no. 1052-PL12 pictured on right)
Flourescent Wide Area Twin Lamps
| Part No. | Feed Thru Outlet |
Fixture Voltage |
Fixture Wattage |
Cord Type |
Primary Cord Length |
Secnodary Cord Length |
Lumens |
| 1052-PL12 | • | 12VAC/DC | 80W | 12/3 S00W | 4' | 6" | 6300 |
| 1052-12 | • | 12VAC/DC | 64W | 12/3 S00W | 4' | 6" | 5300 |
| 1051-PL12 | • | 12VAC/DC | 80W | 12/3 S00W | 25' | 6" | 6300 |
| 1051-PL | • | 12VAC/DC | 64W | 12/3 S00W | 25' | 6" | 5300 |
| 1050-PL12 | 12VAC/DC | 80W | 12/3 S00W | 25' | -- | 6300 | |
| 1050-PL | 12VAC/DC | 64W | 14/3 SJ00W | 25' | -- | 5300 | |
| 1026-12 | 12VAC/DC | 50W | 12/3 S00W | 25' | -- | 4450 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
Replacement Parts
| Part No. | Description |
| 40-1485 | VELCRO STRAP AND HOOK ASSEMBLY TWIN TUBE |
| 42-1060 | TEAR OFF SHIELD COVER FOR TWIN LAMPS |
| 70-3601 | SHIELD ASSEMBLY FOR 160W TWIN TUBE |
| 70-3602 | SHIELD ASSEMBLY FOR 50W TWIN TUBE |
| 70-3603 | SHIELD ASSEMBLY FOR 30W TWIN TUBE |
| 70-3607 | SHIELD ASSEMBLY FOR 80W TWIN TUBE |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |
