Wide Area Lamps | Industrial Duty - Flourescent 30W, 50W, 64W, 80W, 160W
Wide Area Lamps
Flourescent Feed Thru Lamp
- 25' primary, 6" secondary cord length
- 5700 lumens
- Two 32W T8 lamps
Lighting requirements for wide area illumination are a bright spot for Woodhead Super-Safeway flourescent twin lamps. both T8 and PL formats are ideal for lighting in tunnels, passageways, large tanks and vessels or wherever wide area industrial lighting is needed.

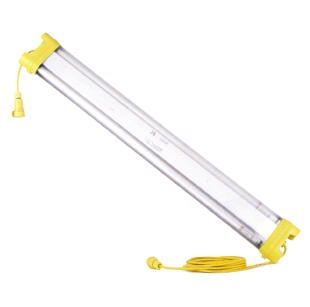

(part no. 1351 pictured on right)
Flourescent Wide Area Twin Lamps
| Part No. | Feed Thru Outlet |
Fixture Voltage |
Fixture Wattage |
Primary Cord Length |
Secnodary Cord Length |
Lumens |
| 1351 | • | 120V/60HZ | 64W | 25' | 6" | 5700 |
| 1352 | • | 120V/60HZ | 64W | 4' | 6" | 5700 |
| 1350 | 120V/60HZ | 64W | 25' | -- | 5700 | |
| 1351-E | • | 110V/50HZ | 64W | 25' | 6" | 5700 |
| 1352-E | • | 110V/50HZ | 64W | 4' | 6" | 5700 |
| 1336 | • | 120V/60HZ | 50W | 25' | 6" | 4160 |
| 1337 | • | 120V/60HZ | 50W | 4' | 6" | 4160 |
| 1326 | 120V/60HZ | 50W | 25' | -- | 4160 | |
| 1336-E | • | 110V/50HZ | 50W | 25' | 6" | 4160 |
| 1336-P | • | 230V/50HZ | 50W | 25' | 6" | 4160 |
| 1335 | • | 120V/60HZ | 30W | 4' | 6" | 1820 |
| 1334 | • | 120V/60HZ | 30W | 25' | 6" | 1820 |
| 1324 | 120V/60HZ | 30W | 25' | -- | 1820 | |
| 1334-E | • | 110V/50HZ | 30W | 25' | 6" | 1820 |
| 1324-E | 110V/50HZ | 30W | 25' | -- | 1820 | |
| 1324-P | 230V/50HZ | 30W | 25' | -- | 1820 | |
| 1051-PL | • | 120V/60HZ | 80W | 25' | 6" | 6300 |
| 1052-PL | • | 120V/60HZ | 80W | 4' | 6" | 6300 |
| 1050-PL | 120V/60HZ | 80W | 25' | -- | 12600 | |
| 1061-PL | • | 120V/60HZ | 160W | 25' | 6" | 12600 |
| 1062-PL | • | 120V/60HZ | 160W | 4' | 6" | 12600 |
| 1060-PL | 120V/60HZ | 160W | 25' | -- | 12600 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
