Wide Area Lamps | Industrial Duty - Quartz Halogen Floodlights, 100W, 500W, 1000W
Portable Lighting
Halogen Floodlight
- 5-15 NEMA plug
- 500W lamp
- 25' 16/3 S00W cord
The need for temporary wide are lighting can arise in virtually any application, which is why Woodhead offers the dual 500 watt portable floodlight stanchion and 500 and 1000 watt halogen floodlights. These lights feature heavy-duty steel guards and steel frames that protect the lamps and support the fixture for rigorous use.

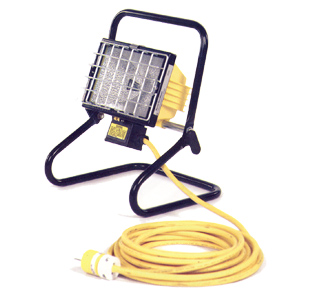

(part no.85506 pictured on right)
Quartz Halogen Floodlights
| Part No. | GFCI Outlet Box |
Switch | Mount | Fixture Voltage |
Lamp Wattage |
Cord Type |
NEMA Configuration |
Cord Length |
| 8506 | Stand | 120VAC | 500W | 16/3 S00W | Super-Safeway NEMA 5-15 | 25' | ||
| 8506M | Magnet | 120VAC | 500W | 16/3 S00W | Super-Safeway NEMA 5-15 | 25' | ||
| 8500 | Stand | 120VAC/DC | 100W | 16/3 S00W | Super-Safeway non-NEMA | 25' | ||
| 8500M | Magnet | 120VAC/DC | 100W | 16/3 S00W | Super-Safeway non-NEMA | 25' | ||
| 8511 | Stand | 120VAC | 1000W | 16/3 S00W | Super-Safeway NEMA 5-15 | 25' | ||
| SBG2500 | • | Stanchion | 120VAC | 500W | 12/3 S00W | Watertite NEMA 5-20 | 1.5' | |
| SBG2500 | • | • | Stanchion | 120VAC | 500W | 12/3 S00W | Watertite NEMA 5-20 | 1.5' |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Replacement Parts
| Part No. | Description |
| 200 | MAGNETIC MOUNTING ASSEMBLY (2 MAGNETS) |
| 34-0040 | LAMP FOR SUPER-SAFEWAY 1000W QUARTZ HALOGEN |
| 34-0190 | LAMP FOR SUPER-SAFEWAY 100W QUARTZ HALOGEN |
| 34-0230 | LAMP FOR SUPER-SAFEWAY 500W QUARTZ HALOGEN |
| 8505 | 500W QUARTZ HALOGEN FIXTURE WITHOUT GUARD |
| 8507 | METAL GUARD FOR SUPER-SAFEWAY 500W+100W QUARTZ HALOGEN |
| 8510 | 1000W QUARTZ HALOGEN FIXTURE WITHOUT GUARD |
| 8512 | METAL GUARD FOR SUPER-SAFEWAY 1000W QUARTZ HALOGEN |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |
