Hand Lamps | Industrial Duty - Incandescent, 100W
Portable Lighting
240V MAX
Incandescent Hand Lamp
- on/off switch in handle
- utility outlet in handle
- screw release guard with reflector
- 25' 16/3 SOOW cord
Heavy-duty construction and long operating life in industrial applications is what sets the Woodhead line of Industrial Duty Handlamps apart from all others. #8 gauge zinc-plated guards and thick NEōTEX rubber handles help protect bulbs and electrical components, while an ergonomically designed fencer's flange handle helps protect the user from accidentaly touching a hot steel guard.

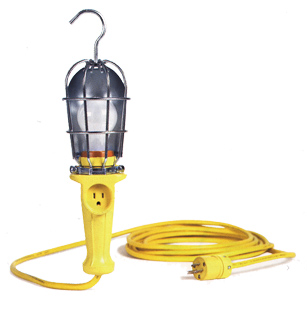

(part no. 106USA163 pictured on right)
Industrial Duty Handlamps (PDF) (372 KB)
Industrial Duty Incandescent Hand Lamps
| Part No. | Side Outlet |
Switch | Guard Type |
Fixture Voltage |
Lamp Wattage |
Cord Type |
Cord Length |
| 105US | • | • | Quick-Open | 240V Max | 100W Max | -- | -- |
| 105USA163 | • | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 25' |
| 105USB163 | • | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 50' |
| 105S | • | Quick-Open | 240V Max | 100W Max | -- | -- | |
| 105SA163 | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 25' | |
| 105SB163 | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 50' | |
| 105U | • | Quick-Open | 240V Max | 100W Max | -- | -- | |
| 105UA163 | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 25' | |
| 105UB163 | • | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 50' | |
| 105 | Quick-Open | 240V Max | 100W Max | -- | -- | ||
| 105A163 | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 25' | ||
| 105B163 | Quick-Open | 240V Max | 100W Max | 16/3 SOOW | 50' | ||
| 106US | • | • | Screw Release | 240V Max | 100W Max | -- | -- |
| 106USA163 | • | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 25' |
| 106USB163 | • | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 50' |
| 106S | • | Screw Release | 240V Max | 100W Max | -- | -- | |
| 106SA163 | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 25' | |
| 106SB163 | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 50' | |
| 106U | • | Screw Release | 240V Max | 100W Max | -- | -- | |
| 106UA163 | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 25' | |
| 106UB163 | • | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 50' | |
| 106 | Screw Release | 240V Max | 100W Max | -- | -- | ||
| 106A163 | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 25' | ||
| 106B163 | Screw Release | 240V Max | 100W Max | 16/3 SOOW | 50' | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||
