Hand Lamps | Industrial Duty - Flourescent, 4W, 8W, 15W, 30W
Portable Lighting
15W Flourescent Hand Lamps
- on/off switch in handle
- ballast in handle
- lamp type F15T8
- 25' 18/3 SJYW cord
For applications that require more diffuse lighting, single lamp flourescent hand lamps are ready for the job. The use of T8 and T5 bulbs in a hand lamp design puts the power of lighting a fixture in the palm of your hand.

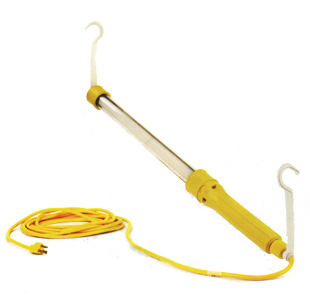

(part no. 1003-3 pictured on right)
Industrial Duty Handlamps (PDF) (372 KB)
Industrial Duty Flourescent Hand Lamps
| Part No. | Switch | Fixture Voltage |
Lamp Wattage |
Cord Type |
Ballast Location |
NEMA Configuration |
Cord Length |
Lumens | Lamp Type |
| 1003-3 | • | 120V/60HZ | 15W | 18/3 SJTW | Handle | NEMA 5-15 | 25' | 910 | F15T8 |
| 1005-3 | • | 120V/60HZ | 15W | 18/3 SJTW | Handle | NEMA 5-15 | 50 | 910 | F15T8 |
| 1013-3 | • | 120V/60HZ | 30W | 18/3 SJTW | Cord | NEMA 5-15 | 25' | 2000 | F30/T8 |
| 1015-3 | • | 120V/60HZ | 30W | 18/3 SJTW | Cord | NEMA 5-15 | 50 | 2000 | F30/T8 |
| 1045 | 120V/60HZ | 4W | 18/3 SJTW | Cord | NEMA 5-15 | 18 | 95 | F4T5 | |
| 1049 | 120V/60HZ | 8W | 18/3 SJTW | Cord | NEMA 5-15 | 18 | 300 | F8T5 | |
| 1003-3-P | • | 230V/50HZ | 15W | 18/3 SJTW | Handle | -- | 25' | 910 | F15T8 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
Replacement Parts
| Part No. | Description |
| 1003-3H0 | 100-3-3 WITHOUT CORD; FIXTURE ONLY |
| 34-1910 | 15W T8 LAMP |
| 34-2310 | 30W T8 LAMP |
| 34-6890 | 4W T5 LAMP |
| 34-3630 | 8W T5 LAMP |
| 40-1120 | SHIELD ASSEMBLY FOR 15W SUPER SAFEWAY HAND LAMP |
| 40-1140 | SHIELD ASSEMBLY FOR 30W SUPER SAFEWAY HAND LAMP |
| 70-1351 | NYLON CAP HOOK FOR 15W AND 30W SUPER SAFEWAY HAND LAMPS |
| 70-1352 | NYLON HANDLE HOOK FOR 15W AND 30W SUPER SAFEWAY HAND LAMPS |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |
