Hand Lamps | Industrial Duty - Fluorescent, 13W, 27W, 40W
Portable Lighting
13W Flourescent Hand Lamps
- on/off switch in handle
- ballast on cord
- lamp type PL13/41
- 25' 18/3 SJ100W cord
Ideal for task ligting applications, flourescent hand lamps offer bright, diffuse illumination from 900 to 3150 lumens and still remain cool to the touch. The flourescent bulbs and rubber handles offer the most robust and rugged features that provide you with the safety, durability and reliability you expect from a Woodhead hand lamp.

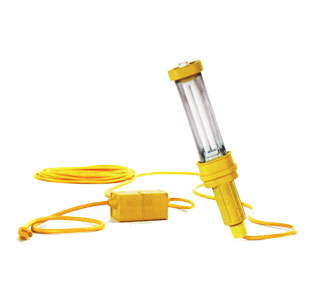

(part no. 1083-3 pictured on right)
Industrial Duty Handlamps (PDF) (372 KB)
Industrial Duty Flourescesnt Hand Lamps
| Part No. | Switch | Fixture Voltage |
Lamp Wattage |
Cord Type |
Ballast Location |
NEMA Configuration |
Cord Length |
Lumens | Lamp Type |
| 1083-3 | • | 120V/60HZ | 13W | 18/3 STJOOW | Cord | NEMA 5-15 | 25' | 900 | PL13/41 |
| 1083-3NS | 120V/60HZ | 13W | 18/3 STJOOW | Cord | NEMA 5-15 | 25' | 900 | PL13/41 | |
| 1085-3NS | 120V/60HZ | 13W | 18/3 STJOOW | Cord | NEMA 5-15 | 50' | 900 | PL13/41 | |
| 1086-3NS | 120V/60HZ | 13W | 16/3 STJOW | Handle | NEMA 5-15 | 25' | 900 | PL13/41 | |
| 1087-3NS | 120V/60HZ | 13W | 16/3 STJOW | Handle | NEMA 5-15 | 50' | 900 | PL13/41 | |
| 1085-3 | • | 120V/60HZ | 13W | 18/3 STJOOW | Cord | NEMA 5-15 | 50' | 900 | PL13/41 |
| 1086-3 | • | 120V/60HZ | 13W | 16/3 STJOW | Handle | NEMA 5-15 | 25' | 900 | PL13/41 |
| 1087-3 | • | 120V/60HZ | 15W | 16/3 STJOW | Handle | NEMA 5-15 | 50' | 900 | PL13/41 |
| 1093-3 | • | 120V/60HZ | 27W | 18/3 STJOOW | Cord | NEMA 5-15 | 25' | 1800 | PL-L 27/41 |
| 1095-3 | • | 120V/60HZ | 27W | 18/3 STJOOW | Cord | NEMA 5-15 | 50' | 1800 | PL-L 27/41 |
| 1097-3 | • | 120V/60HZ | 40W | 18/3 STJOOW | Cord | NEMA 5-15 | 25' | 3150 | PL-L 40/41 |
| 1099-3 | • | 120V/60HZ | 40W | 18/3 STJOOW | Cord | NEMA 5-15 | 50' | 3150 | PL-L 40/41 |
| 1083-3-P | • | 230V/50HZ | 13W | 18/3 STJOOW | Cord | -- | 25' | 900 | PL13/41 |
| 1085-3-P | • | 230V/50HZ | 13W | 18/3 STJOOW | Cord | -- | 50' | 900 | PL13/41 |
| 1083-3-E | • | 110V/50HZ | 13W | 18/3 STJOOW | Cord | -- | 25' | 900 | PL13/41 |
| 1086-3-E | • | 110V/50HZ | 13W | 16/3 STJOW | Handle | -- | 25' | 900 | PL13/41 |
| 1087-3-E | • | 110V/50HZ | 13W | 16/3 STJOW | Handle | -- | 50' | 900 | PL13/41 |
| 1093-3-E | • | 110V/50HZ | 27W | 18/3 STJOOW | Cord | -- | 25' | 1800 | PL-L 27/41 |
| 1097-3-E | • | 110V/50HZ | 40W | 18/3 STJOOW | Cord | -- | 25' | 3150 | PL-L 40/41 |
| 1099-3-E | • | 110V/50HZ | 40W | 18/3 STJOOW | Cord | -- | 25' | 3150 | PL-L 40/41 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
Replacement Parts
| Part No. | Description |
| 1086LC | TEAR OFF SHIELD COVER FOR 1083-3 & 1086-3 HAND LAMPS |
| 1083-3H0N | 1083-3 WITHOUT CORD; FIXTURE ONLY |
| 1083-3H0NS | 1083-3 WITHOUT CORD AND SWITCH; FIXTURE ONLY |
| 1086-3H0 | 13W WITH SWITCH & BALLAST IN HANDLE 120V/60HZ FIX. VOLT., 900 LUMENS, LAMP TYPE PL13/41, 34-0390 REPLAC. LAMP |
| 34-0390 | 13W PL LAMP |
| 34-0130 | 27W PL-L LAMP |
| 40-1040 | SHIELD ASSY. FOR 13W FLUOR. HAND LAMP (1083/1086 SERIES) |
| 40-1020 | SHIELD ASSY. FOR 27W HAND LAMP (1093 SERIES) |
| 40-1021 | SHIELD ASSY. FOR 40W HAND LAMP (1097 SERIES) |
| 70-1350 | NYLON HOOK FOR 13W, 27W & 40W HAND LAMPS |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |
