Hand Lamps | Hazardous Duty - Fluorescent, 26W
Portable Lighting
26W Fluorescent Hand Lamp
- 5-15 NEMA plug
- 25' 16/3 S00W cord
Woodhead hazardous duty portable lights are designed and manufactured to meet the stringent specifications of NEC Article 500 and are U.L. listed and CSA certified for Class I, Division I, Groups C & D (flammable gases and vapors), and Class II, Division I Groups F & G (ignitable dust) as well as U.L. Class I, Zone 1, Group IIB. For hazardous duty and wet locations, use the 12-volt version of Woodhead's most popular incandescent lamp with an in-line transformer or use with a low-volt workstation.

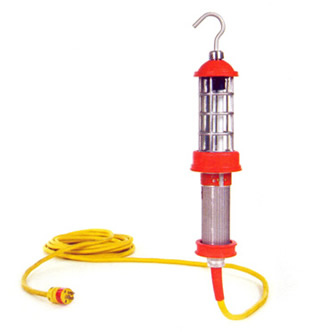

(part no. 1090-HZA163 pictured on right)
Hazardous Duty Handlamps (PDF) (166 KB)
Fluorescent Hazardous Duty Hand Lamps
| Part No. | Fixture Volt. | Cord Type | NEMA Config. | Cord Length | Lumens | Lamp Type | Repl. Lamp | Trans. Type | |
| Pri. | Sec. | ||||||||
| 1090-HZ | 120V/60Hz | - | - | - | - | 1800 | PL-C 26/41/4P | 34-0391 | N/A |
| 1090-HZA163 | 120V/60Hz | - | 16/3 S00W | NEMA 5-15 | 25' | 1800 | PL-C 26/41/4P | 34-0391 | N/A |
| 1090-HZB163 | 120V/60Hz | - | 16/3 S00W | NEMA 5-15 | 50' | 1800 | PL-C 26/41/4P | 34-0391 | N/A |
| 1090-HZD163 | 120V/60Hz | - | 16/3 S00W | NEMA 5-15 | 100' | 1800 | PL-C 26/41/4P | 34-0391 | N/A |
| 1090-HZ12IA163 | 120V/60Hz | 12VAC | 16/3 S00W | NEMA 5-15 | 25' | 1800 | PL-C 26/41/4P | 34-0391 | IN-LINE |
| 1090-HZ12IB163 | 120V/60Hz | 12VAC | 16/3 S00W | NEMA 5-15 | 50' | 1800 | PL-C 26/41/4P | 34-0391 | IN-LINE |
| 1090-HZ12ID143 | 120V/60Hz | 12VAC | 14/3 S00W | NEMA 5-15 | 100' | 1800 | PL-C 26/41/4P | 34-0391 | IN-LINE |
| 1090-HZ12IB163P | 220/12 | - | 16/3 S00W | - | 50' | 1800 | PL-C 26/41/4P | 34-0391 | IN-LINE |
| 1090-HZ12ID143P | 220/12 | - | 14/3 S00W | - | 50' | 1800 | PL-C 26/41/4P | 34-0391 | IN-LINE |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
Fluorescent Hazardous Duty Hand Lamps - Low Voltage
| Part No. | Voltage | Cord Type | NEMA Config. |
Cord Length |
Lumens | Lamp Type | Repl. Lamp | Transformer Type |
|
| Pri. | Sec. | ||||||||
| 1090-HZ12A163 | 120VAC | - | 16/3 S00W | NON-NEMA | 25' | 1800 | PL-C 26/41/4P | 34-0391 | WORKSTATION |
| 1090-HZ12B163 | 120VAC | - | 16/3 S00W | NON-NEMA | 50' | 1800 | PL-C 26/41/4P | 34-0391 | WORKSTATION |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
