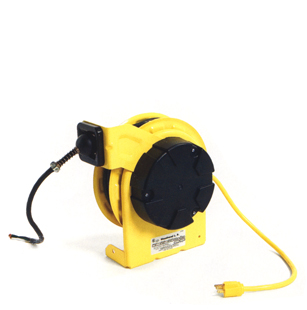

Standard Duty Cord Reels

  • Holds up to 5.4m (50') of standard-duty cord
  • Adjustable spring tension
  • Built-in ratchet locks

Standard duty cord reels have a variety of optional accessories and are available in swinging or rigid mount versions. Reels come with enclosed electrical contacts, adjustable tension, and built in ratchet locks. Standard duty reels are exceptionally cost-effective and feature a durable steel/polycarbonate frame and retraction weight ratings up to 3 lbs.

Reels (PDF) (1053 KB)

Standard Duty Cord Reels
Part No. Wire Gauge Conductors AMPS Cord Length Construction Retraction
945-3 16 AWG 3 6A 35' All Steel 2 Lbs
980 16 AWG 3 8A 50' Sttel/Polycarbonate 3 Lbs
990 14 AWG 3 11A 45' Sttel/Polycarbonate 3 Lbs
997 12 AWG 3 15A 35' Sttel/Polycarbonate 3 Lbs
CLICK ON A PART NUMBER FOR MORE OPTIONS
Ball Stop Assemblies
Part No. Cable Diameter
9521 Up to 0.750"
9522 0.750" - 0.875"
9523 0.875" - 1.200"
CLICK ON A PART NUMBER FOR MORE OPTIONS
