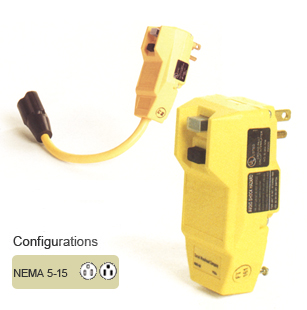

GFCI Plug


Woodhead's Safe-T-Check GFCI attachable plug products feature a manul resetwhich must be activated after a power outage or a ground fault condition, and serves to prevent the potential risk of unmonitored equipment start-up. Additionally, contacts are spring-loaded to assure more consitant conductivity and exted the life of each GFCI device. Woodhead offers a complete line of OSHA and NEC conmpliant portable 15 amp ground fault circuit interrupter plug products ranging from protected cordsets to outlet boxes.

GFCI Plugs (PDF) (171 KB)

GFCI Plugs
Part No. AMPS HZ VOLTS Cord
Type
Cord
Length
Pigtail and
Molded Connector
NEMA
Configuration
15054 15 A 50/60 HZ 120 VAC -- -- -- NEMA 5-15
15054-1 15 A 50/60 HZ 120 VAC 14/3 SJTW 9" NEMA 5-15
CLICK ON A PART NUMBER FOR MORE OPTIONS
