Wet Location | Low Voltage Spotlights and Floodlights, 30W, 35W, 60W, 100W
Spotlights and Floodlights
30W Spotlight
- 5-15 NEMA plug
- on/off switch in handle
- 50,000 candle power
- lamp type PAR 36
- 6° x 5° beam spread
- 50' 14/2 S00W secondary cord
Woodhead wet-location lights and associated devices are exceptionally durable, easy to handle and service, and capable of long, continuous operation in some of industry's most demanding enviornments. Spoptlights and floodlights for both 120V and 12V usage shows Woodhead's commitment to the right products for the right enviornments, whatever they may be.

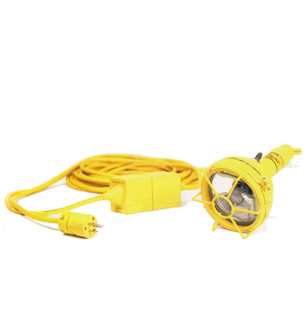

(part no. 1610S pictured on right)
Spotlights and Floodlights (PDF) (372 KB)
Spotlights
| Part No. | Switch | Primary Fixture Voltage |
Secondary Fixture Voltage |
Lamp Wattage |
Candle Power |
Beam Spread |
Primary Cord Type |
Secondary Cord Type |
Transformer Type |
| 1610S | • | 120V/60HZ | 12VAC | 30W | 50000 | 6° X 5° | 16/3 S00W | 14/2 S00W | In-Line |
| 1610 | 120V/60HZ | 12VAC | 30W | 50000 | 6° X 5° | 16/3 S00W | 14/2 S00W | In-Line | |
| 1606 | 12VAC/DC | -- | 30W | 50000 | 6° X 5° | 16/3 S00W | 16/2 S00W | Battery Clips | |
| 1647-12 | 12VAC/DC | -- | 30W | 50000 | 6° X 5° | 16/3 S00W | 14/2 S00W | Workstation | |
| 1684S | • | 220V/60HZ | 12VAC | 30W | 50000 | 6° X 5° | 16/3 S00W | 14/2 S00W | In-Line |
| 1684 | 220V/60HZ | 12VAC | 30W | 50000 | 6° X 5° | 16/3 S00W | 14/2 S00W | In-Line | |
| 1691-12BS | • | 120V/60HZ | 12VAC | 60W | 60000 | 14° X 6° | 16/3 S00W | 14/2 S00W | In-Line |
| 1691-12 | 12VAC/DC | -- | 60W | 60000 | 14° X 6° | 16/3 S00W | 14/2 S00W | Workstation | |
| 1691-12B | 120V/60HZ | 12VAC | 60W | 60000 | 14° X 6° | 16/3 S00W | 14/2 S00W | In-Line |
Floodlights
| Part No. | Switch | Primary Fixture Voltage |
Secondary Fixture Voltage |
Lamp Wattage |
Beam Spread |
Primary Cord Type |
Secondary Cord Type |
Transformer Type |
| 1612S | • | 120V/60HZ | 12VAC | 35W | 110° | 16/3 S00W | 14/2 S00W | In-Line |
| 1612 | 120V/60HZ | 12VAC | 35W | 110° | 16/3 S00W | 14/2 S00W | In-Line | |
| 1639-12 | 12VAC/DC | -- | 35W | 110° | -- | 16/2 S00W | Workstation | |
| 1682S | • | 220V/60HZ | -- | 35W | 110° | 16/3 S00W | 14/2 S00W | In-Line |
| 1682 | 220V/60HZ | 12VAC | 35W | 110° | 16/3 S00W | 14/2 S00W | In-Line | |
| 1692-12BS | • | 120V/60HZ | 12VAC | 60W | 110° | 16/3 S00W | 14/2 S00W | In-Line |
| 1692-12B | 120V/60HZ | 12VAC | 60W | 110° | 16/3 S00W | 14/2 S00W | In-Line | |
| 1638-12 | 12VAC/DC | -- | 60W | 110° | -- | 14/2 S00W | Workstation | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||||
Replacement Parts
| Part No. | Description |
| 00-4140 | in-line transformer cover for LV spotlights/floodlights - Right half |
| 00-4180 | in-line transformer cover for LV spotlights/floodlights - left half |
| 1653-12 | in-line transformer for 35w floodlight (120v-12v) |
| 1660 | handle assembly with guard for spotlight & floodlight |
| 1660S | handle assembly with guard for spotlight & floodlight with switch |
| 1668 | guard for spotlight & floodlight |
| 1675-12 | in-line transformer for 60w floodlight (120v-12v) |
| 1676 | in-line transformer cover for 60w floodlight & 100w spotlight |
| 1677 | in-line transformer replacement handle |
| 34-0210 | 100w 12v par36 spot lamp (low volt) |
| 34-0380 | 60w 12v par36 flood lamp (low volt) |
| 34-2120 | 30w 12v par36 spot lamp (low volt) |
| 34-2840 | 35w 12v par36 flood lamp (low volt) |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |
