Machine Lights | Incandescent & Flourescent, 13W, 20W, 26W, 27W, 40W, 60W
Temporary Lighting
Flourescent Machine Light
- magnetic mount
- 13W
Machine tool lights available in three styles (flourescent, haloge, and incandescent), provide bright, safe illumination in harsh and abbusive enviornments - both fixed and temporary. Realizing that every application is different, Woodhead offers various mounting options. Choose from flexible neck, screw mounting or magnet mounting to fit your needs.

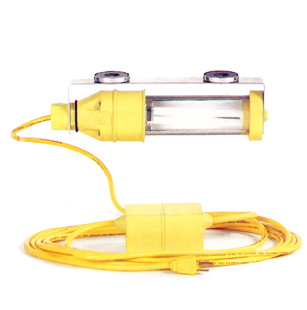

(part no. 1083-MM pictured on right)
Machine Lights
| Part No. | Description | Mount Type |
Fixture Voltage |
Lamp Wattage |
NEMA Configuration |
Cord Length |
| 1083-3MM | Flourescent | Magnet | 120V/60HZ | 13W | Super-Safeway NEMA 5-15 | 15' |
| 1083-3M | Flourescent | Screw | 120V/60HZ | 13W | Super-Safeway NEMA 5-15 | 15' |
| 1083-3MM-24 | Flourescent | Magnet | 24 DC | 13W | -- | 15' |
| 1083-3M-P | Flourescent | Screw | 230V/50HZ | 13W | -- | 25' |
| 1093-3MM | Flourescent | Magnet | 120V/60HZ | 27W | Super-Safeway NEMA 5-15 | 15' |
| 1093-3M | Flourescent | Screw | 120V/60HZ | 27W | Super-Safeway NEMA 5-15 | 15' |
| 1097-3MM | Flourescent | Magnet | 120V/60HZ | 40W | Super-Safeway NEMA 5-15 | 15' |
| 1097-3M | Flourescent | Screw | 120V/60HZ | 40W | Super-Safeway NEMA 5-15 | 15' |
| 8530M | Incandescent | Magnet | 120VAC | 60W | NEMA 1-15 | 10' |
| 8530P | Incandescent | Screw | 120VAC | 60W | NEMA 1-15 | 10' |
| 8540M | Halogen | Magnet | 120VAC | 20W | NEMA 5-15 | 10' |
| 8540P | Halogen | Screw | 120VAC | 20W | NEMA 5-15 | 10' |
| 8550M | Flourescent | Magnet | 120VAC | 13W | NEMA 5-15 | 10' |
| 8550P | Flourescent | Screw | 120VAC | 13W | NEMA 5-15 | 10' |
| 2113S | Flourescent | Screw | 120V/60HZ | 13W | WaterTite NEMA 5-15 | 15' |
| 2113MS | Flourescent | Magnet | 120V/60HZ | 13W | WaterTite NEMA 5-15 | 15' |
| 2113GS | Flourescent | Screw | 120V/60HZ | 13W | WaterTite NEMA 5-15 | 15' |
| 2126S | Flourescent | Screw | 120V/60HZ | 26W | WaterTite NEMA 5-15 | 15' |
| 2126MS | Flourescent | Magnet | 120V/60HZ | 26W | WaterTite NEMA 5-15 | 15' |
| 2126GS | Flourescent | Screw | 120V/60HZ | 26W | WaterTite NEMA 5-15 | 15' |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
